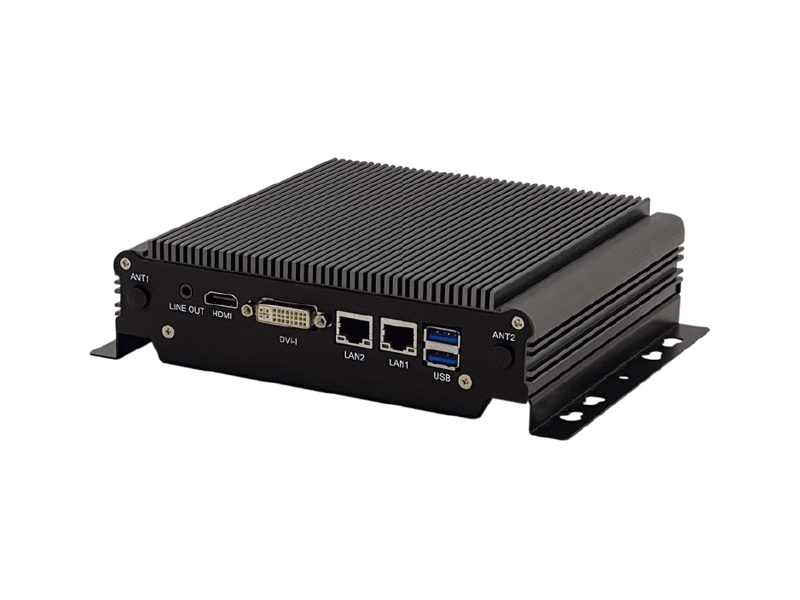

SBOX-2320

Intel Braswell N-Series Atom CPU with 2xLAN/ HDMI/ DVI/ VGA DC 9-36V Fanless Box PC

  • Intel Braswell N3060 Atom CPU
  • Triple Display Output (DVI-I / HDMI / VGA)
  • Support Embedded OS (Win 10 and Ubuntu 14.04)
  • Dual Gigabit Ethernet and 2 x RS-232
  • Wide Range Operating Temp. : -30~60ºC
  • Ultra Slim(48mm), Compact Size and Fanless
  • DC 9-36V Power Input

Datasheet Add to Inquiry

System

CPU Intel N3710 Quad Core CPU up to 2.56HGz
Intel N3160 Quad Core CPU up to 2.24HGz
Intel N3060 Dual Core CPU up to 2.48HGz
Memory 1 x DDR3L-1600 SO-DIMM up to 8GB
Graphic Intel HD Graphics
ATA 2 x Serial ATA ports with 6GB/s HDD Transfer Rate
LAN Chipset 2 x Intel i210-AT Gigabit Ethernet
Watchdog 1 ~ 255 Level Reset

I/O

Serial Port 2 x RS-232/422/485 (Optional Max. 4 x RS-232)
USB Port 2 x USB 2.0 and 2 x USB 3.0 Ports
LAN 2 x RJ45 ports for GbE
Video Port HDMI/ DVI/ VGA (Though DVI-I), Max. 3 Display Outputs
GPIO Port Support 4 In and 4 Out GPIO Ports (5V Level)
Audio Port Line-out
Expansion bus 3 x Mini-card Slots (1 with SIM for 3G Only)

Storage

Type
  • 1 x 2.5" drive bay for SATA Type Hard Disk Drive / SSD
  • 1 x mSATA DOM

Mechanical & Environmental

Dimension (LxWxH) 182 x 167.6 x 48 mm
Mounting Wall-mount, VESA-mount, Din Rail Mounting Kit
Weight 1200g (bare-bone)
Relative Humidity 10 ~ 95% @ 40ºC (non-condensing)
Operating Temp. -30 ~ 60ºC, ambient w/ air
Storage Temp. -40 ~ 85°C
Power Input DC 9-36V Input w/ Reverse Polarity OCP and OVP Protection
