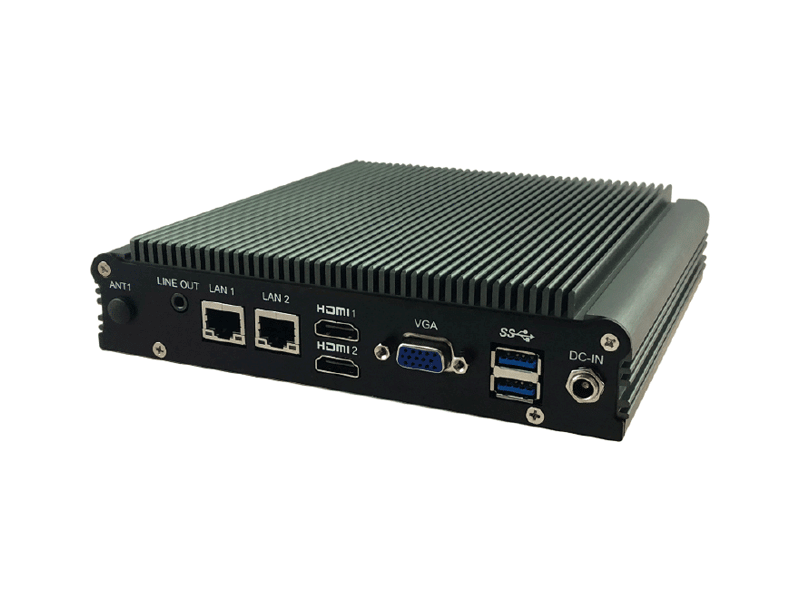

SBOX-2601

Intel Gen 6 i7-6600U with HD Graphic 520 / 2 x LAN/ 2 x HDMI/ VGA DC 12V Fanless Box PC

Intel Gen 6 Core i7-6600U
Triple Display Output ( 2 x HDMI / VGA)
Dual Gigabit Ethernet
Wide Range Operating Temperature -30~60°C
Ultra Slim, Compact Size and Fanless
The SBOX-2601 is powered by Intel Gen 6 i7-6600U with HD Graphic 520/2 x LAN/2 x HDMI/VGA/DC 12V, and up to 16GB DDR4 SODIMM Fanless Box PC. Intel’s sixth-generation core microarchitecture, “Skylake”, is perfect solution for the application that requires a boost in performance, such as when streaming multimedia. SBOX-2601 is designed for outdoor video surveillance, automatic factory, automatic guided vehicle (AGV) and flight information display system (FIDS) in the airports. The solutions can tackle all manner of outdoor digital applications and extreme weather conditions. In addition, the ultra slim (40 mm) compact size makes this series ideally suited for digital signage or kiosks where space is limited.

System

Processor

Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz
Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz
Intel Gen 6 Core i3-6100U 2.3GHz
Intel Gen 6 Dual Core 3955U 2.0GHz

Memory

1 x DDR4 SO-DIMM up to 16GB

Watchdog

1 ~ 255 Level Reset

ATA

2 x Serial ATA ports with 6Gb/s HDD Transfer Rate

Graphics

Graphics Engine

Intel HD Graphics

HDMI

2

VGA

1

Audio

Line-out

1

Mic-in

1

Ethernet

Chipset

1 x Intel i210-AT Gigabit Ethernet
1 x Intel i219-LM Gigabit Ethernet (LAN 2), support iAMT for i5 & i7

Port

2 x RJ45 Ports for GbE

I/O

Serial Port

3 x RS-232/422/485 (for i7 and i5)
2 x RS-232/422/485 (for i3 and C1)

USB

2 x USB 3.0
2 x USB 2.0

GPIO

4 In and 4 Out GPIO Ports (5V Level)

Storage

Type

1 x 2.5" Drive Bay for SATA Type Hard Disk Drive/SSD
1 x SATA DOM

Expansion

Mini-Card Slots

1

M.2

1 x M.2 A-E Key

Power

Power Input

DC 12V Input

Mechanical

Dimension

182 x 167.6 x 47 mm (for i3 and C1)
250 x 167.6 x 54 mm (for i7 and i5)

Weight

1200g (for i3 and C1)
2300g (for i7 and i5)

Construction

Aluminum Alloy

Mounting

Wall-mount (Optional VESA and Din Rail Mounting kit for i3, C1 only)

Environment

Relative Humidity

10% RH – 90% RH (non-condensing)

Operating Temp.

-30°C ~ 60°C, ambient w/ 0.6m/s airflow

Storage Temp.

-40°C ~ 85°C

Ordering Information

Mode Number

SBOX-2601-i7, SBOX-2601-i5, SBOX-2601-i3, SBOX-2601-C1

Description

Intel Gen6 i7-6600U with HD Graphic 520 / 2 x LAN/ 2 x HDMI/ VGA DC 12V Fanless Box PC

State of Origin

Taiwan
