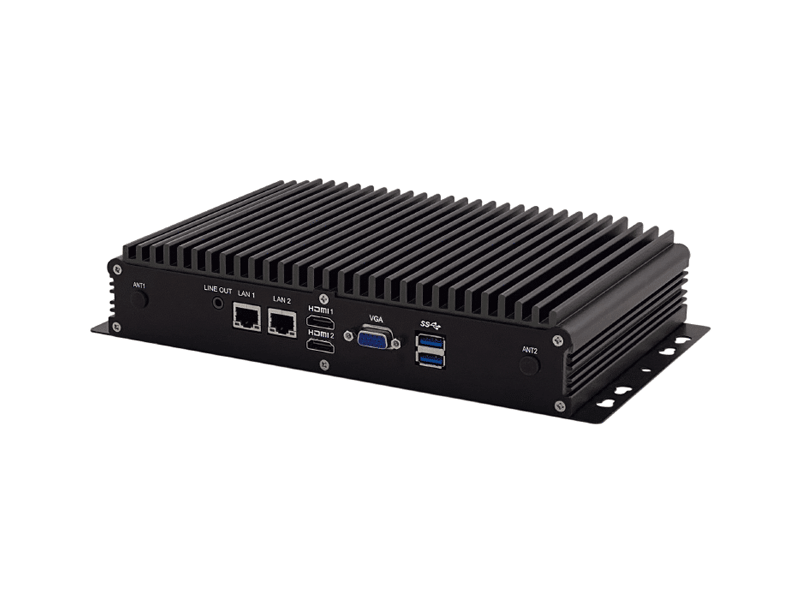

SBOX-2621

Intel Gen 6 i7-6600U with HD Graphic 520/ 2 x LAN/ 2 x HDMI/ VGA/ DC 9-36V Fanless Box PC

  • Intel Gen 6 Core i7-6600U
  • Triple Display Output ( 2 x HDMI / VGA)
  • Dual Gigabit Ethernet
  • Wide Range Operating Temp. : -30~60ºC
  • Ultra Slim(54mm), Compact Size and Fanless
  • DC 9-36V Power Input

Datasheet Add to Inquiry

System

CPU Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz
Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz
Intel Gen 6 Core i3-6100U 2.3GHz
Intel Gen 6 Dual Core 3955U 2.0GHz
Memory 1 x DDR4 SO-DIMM up to 16GB
Graphic Intel HD Graphics 520
ATA 2 x Serial ATA ports with 6GB/s HDD Transfer Rate
LAN Chipset 1 x Intel i210-AT Gigabit Ethernet
1 x Intel i219-LM Gigabit Ethernet (LAN 2), support iAMT for i5 & i7
Watchdog 1 ~ 255 Level Reset

I/O

Serial Port 4 x RS232/422/485
USB Port 2 x USB 2.0 Ports and 2 x USB 3.0 Ports
LAN 2 x RJ45 ports for GbE
Video Port 2 x HDMI / 1 x VGA
GPIO Port 4 In and 4 Out GPIO Ports (5V Level)
Audio Port Line-out
Expansion bus 3 x Mini-card Slots (1 with SIM for LTE Only)

Storage

Type 1 x 2.5" drive bay for SATA Type Hard Disk Drive / SSD
1 x SATA DOM

Mechanical & Environmental

Dimension (LxWxH) 250 x 167.6 x 54 mm (for i7 and i5)
182 x 167.6 x 40 mm (for i3 and C1)
Mounting Wall-mount, VESA-mount, Din Rail Mounting Kit
Weight 1200g (bare-bone)
Relative Humidity 10% RH – 90% RH (non-condensing)
Operating Temp. -30 ~ 60ºC, ambient w/ 0.6m/s airflow
Storage Temp. -40 ~ 85°C
Power Input DC 9-36V Input w/ Reverse Polarity OCP and OVP Protection
Certifications CE, FCC Class A
