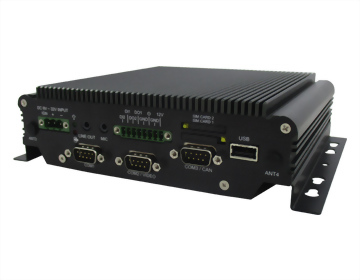

VBOX-3120-3S

Intel Haswell Dual Core 2980U 1.6GHz CPU with 3 x RS-232/ DC 9-36V Input In-Vehicle Computer

  • Intel Gen4 Dual Core 2980U 1.6GHz
  • Wireless support¬†LTE, 3.5G, WLAN, GPS, GSM/GPRS, Bluetooth
  • 9V - 36V DC Power Input
  • Smarter Vehicle Power Ignition for Variety Vehicle
  • 3 x RS-232 (COM1 with RS232/422/485)
  • 2 x DI / 2 x DO (12V / 100mA)

Datasheet E-13 CE FCC Add to Inquiry

System

CPU Intel Gen4 Dual Core 2980U 1.6 GHz
Memory 1 x DDR3L-1600 SO-DIMM up to 8GB
Graphic Intel HD Graphics
ATA 2 x Serial ATA 2.0 Ports with 6Gb/s HDD Transfer Rate
LAN Chipset 2 x Intel i210-AT Gigabit Ethernet
Watchdog 1 ~ 255 Level Reset

Power Requirment

Power Input 9V -36V DC Power Input
Power Management Vehicle Power Ignition for Variety Vehicle
Power Off Control Power off Delay Time Setting by BIOS and Software
Backup Battery Internal Battery Kit for 10 Mins Operating (Optional)
Patent No. : M447854 - Build-in Battery

I/O

Serial Port 3 x RS-232 (COM1 & COM2 with RS-232/422/485)
USB Port 2 x USB 3.0 and 1 x USB 2.0 Ports
LAN 2 x RJ45 ports for GbE
Video Port 1 x HDMI and DVI-I
GPIO Port 2 In and 2 Out (12V / 100mA)
Audio Mic-in / Line-out
Expansion bus 3 x Mini-card Slots
Antenna 4 x SMA-type External Antenna Connectors for WLAN / UMTS / GSM / GPRS / GPS / Bluetooth
SIM Card Socket 2 x SIM Card sockets supported onboard with eject

Mechanical & Environmental

Dimension (LxWxH) 182(L) x 167.6(W) x 54(H) mm
Weight 1.406 kg
Relative Humidity 10 ~ 90% (non-condensing)
Operating Temp. -40 ~ 70°C (SSD), ambient w/ air
Storage Temp. -40 ~ 80°C
Certifications CE, FCC Class A, E-13
Partnet NO. M447854
