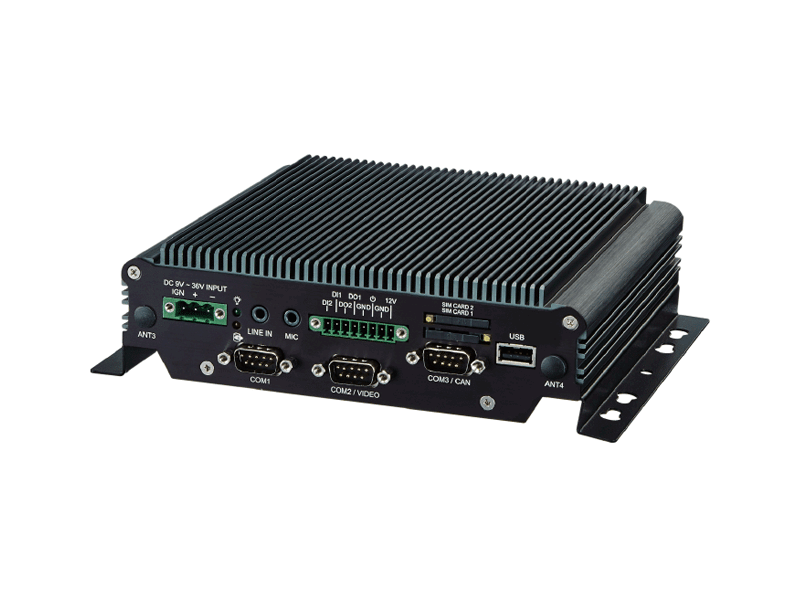

VBOX-3130

Intel® Pentium® / Celeron® Braswell CPU with 9~36V DC Input In-Vehicle Computer

Intel® Pentium® Processor N3710, Up to 2.56 GHz
Wireless support LTE, WLAN, GPS, BT (Option)
9V – 36V DC Power Input
Smarter Vehicle Power Ignition for Variety Vehicle
3 x RS-232 (COM1 & COM2 with RS232/422/485)
2 x DI / 2 x DO (12V / 100mA)
The VBOX-3130 is an in-vehicle computer that is powered by Intel® Pentium® Processor with 9~36V DC power input. It provides 3 x RS-232 (COM1 & COM2 with RS-232/422/485) serial I/O port. VBOX-3130 is designed for fleet management, mobile DVR, driver behavior records,s and in-vehicle digital signage. It features Smarter Vehicle Power Ignition for a variety of vehicles. VBOX-3130 can effectively support vehicles in bad weather and extreme working conditions, such as snowplows, train, and stacker operations. Moreover, VBOX 3130 features a power-off control with a delay time set via software (default is 5 minutes).

System

Processor

Intel® N3710 Quad Core CPU up to 2.56GHz
Intel® N3160 Quad Core CPU up to 2.24GHz
Intel® N3060 Dual Core CPU up to 2.48GHz

Memory

1 x DDR3L-1600 SO-DIMM up to 8GB

Watchdog

1 ~ 255 Level Reset

Graphics

Graphics Engine

Intel HD Graphics

HDMI

1

DVI-I

1 (Use only with Single Link DVI Cables.)

Audio

Line-out

1

Mic-in

1

Ethernet

Chipset

2 x Intel i210-AT Gigabit Ethernet

Port

2 x RJ45 Ports for GbE

I/O

Serial Port

3 x RS-232 (COM1 & COM2 with RS-232/422/485 [Optional Max 4 x RS-232/422/485])

USB

2 x USB 3.0, 1 x USB 2.0

GPIO

2 In and 2 Out (12V / 100mA)

SIM Socket

2 x SIM Card Sockets Supported Onboard with eject
* Use only with Single Link DVI Cables.

Antenna

4 x SMA-type External Antenna Connectors for LTE/ WLAN/ UMTS/ GSM/ GPRS/ GPS/ Bluetooth

Storage

Type

1 x 2.5" Drive Bay for SATA Type Hard Disk Drive/SSD

SATA

1 x SATA DOM

Expansion

Mini-card

3 x Mini-card Slots

Power

Power Input

9V – 36V DC Power Input

Smart Ignition

Vehicle Power Ignition for Variety Vehicle

Power-off Delay Control

Power off Delay Time Setting by BIOS and Software

Backup Battery Solution

Internal Battery Kit for 10 Mins Operating (Optional)
*UPS backup time varies depending on actual overall system power consumption. Patent No. : M447854 – Build-in Battery

Mechanical

Dimension

182(L) x 167.6(W) x 54(H) mm

Weight

1406 g

Construction

Aluminum Alloy

Mounting

Wall-mount, VESA-mount, Din Rail Mounting Kit

Environment

Relative Humidity

10% RH – 90% RH (non-condensing)

Operating Temp.

-40°C ~ 70°C(SSD), ambient w/ 0.6m/s airflow

Storage Temp.

-40°C ~ 80°C

Vibration & Shock

IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating
Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD

Certification

Certification

CE, FCC Class A, E-Mark

Operational System

Windows

WES 7, Windows*
*The supported version depends on the Microsoft® announcement.

Linux

Ubuntu 16.04

Ordering Information

Mode Number

VBOX-3130-NX (X= 0= w/N3060 , X= 1= w/N3160 , X= 2= w/N3710)

Description

Intel Braswell N-Series Atom CPU In-Vehicle Computer with 9~36V DC Input In-Vehicle Computer

State of Origin

Taiwan
