  • VBOX-3611-IP65

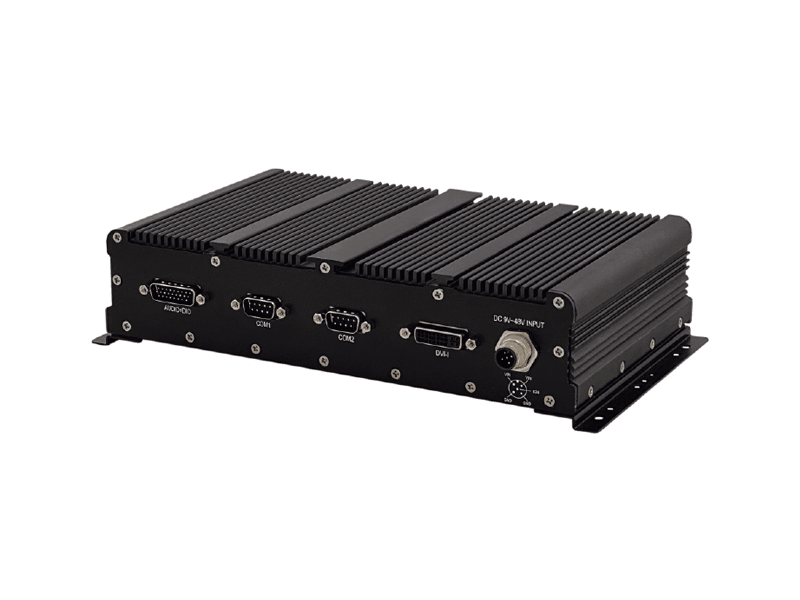

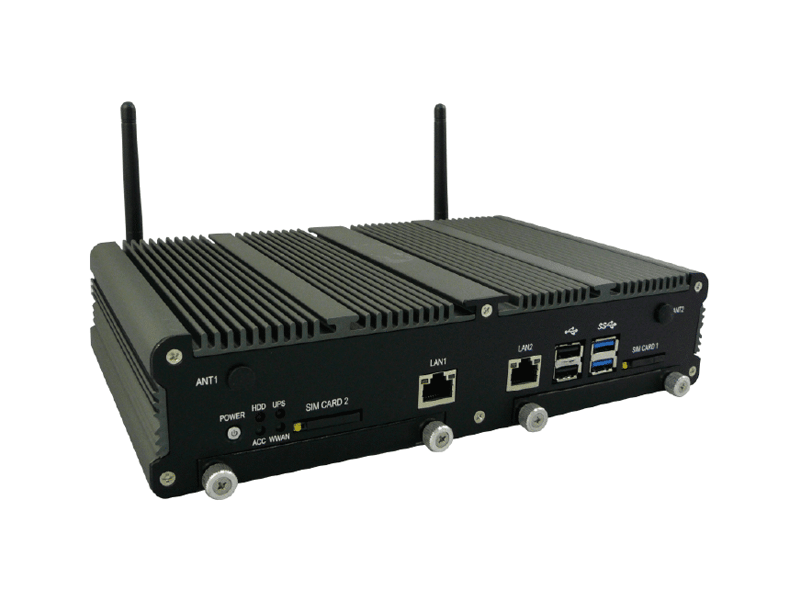

Intel Gen6 Core i7-6600U CPU with HD 520 GPU IP65 In-Vehicle Computer

  • Intel Core i7-6600U
  • Wireless Support LTE, WLAN, GPS, BT (Option)
  • 9V~48V DC Power Input
  • Smarter Vehicle Power Ignition for Variety Vehicle
  • 4 x DI / 2 x DO with Relay 5V / 100mA
  • IP65 Level for Water and Dust Proof

Datasheet Add to Inquiry E-13 CE FCC


CPU Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz
Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz
Intel Gen 6 Core i3-6100U 2.3GHz
Intel Gen 6 Dual Core 3955U 2.0GHz
Memory 2 x DDR4 2133 MHz SO-DIMM up to 32GB
Lan Chipset 1 x Intel I219LM (support iAMT for i5, i7 only) Gigabit Ethernet
1 x Intel I210-AT Gb/s Ethernet Controllers Onboard Support PXE and WOL
Audio Realtek ALC662 HD Codec Onboard
Watchdog Watchdog Timer Support, Offer 1 – 255 Step
TPM 2.0

Power Requirement

Power Input 9V -48V DC Power Input
Power Protection Automatics Recovery Short Circuit Protection
Power Management Vehicle Power Ignition for Variety Vehicle
Backup Battery Internal Battery Kit for 10 Mins Operating (Optional)
Patent No. : M447854 - Build-in Battery


Chipset Intel HD Graphics 520
DirectX Video Acceleration (DXVA) for Accelerating Video
Processing - Full AVC/VC1/MPEG2 HW Decode
Supports DirectX 11/10.1/10/9 and OpenGL 4.0
Resolution Max Resolution (HDMI 1.4) : 4096 x 2304@24Hz
Max Resolution (DP) : 4096 x 2304@60Hz


Type 1 x 2.5" Drive Bay for SATA Type Hard Disk Drive / SSD
1 x M.2 2280 co-layout 2242 M key SSD (SATA BUS)


Serial Port 2 x RS-232/422/485 (optional max. 4 x RS-232/422/485)
USB Port 4 x USB 2.0 Ports on Front I/O
LAN 4 x M12 A-Code for GbE (3 ports with PoE 802.3af)
Video Port 1 x DVI-I*
* Use only with Single Link DVI Cables.
DIO Port 4 in and 4 out with Relay 5V / 100mA
AIO Port 2 x Analog Input (0-48V)
Audio 1 x Line-out, 1 x Mic-in and 1 x Line-in (optional - 1 x Line-out additional)
SIM Card socket 2 x SIM Card sockets supported onboard with eject

Mechanical & Environmental

Dimension (LxWxH) 250 x 155 x 55 mm
Weight 1980g (bare-bone)
Relative Humidity 10% RH – 90% RH (non-condensing)
Operating Temp. -40 ~ 70°C
Storage Temp. -40 ~ 80°C
Certifications CE, FCC Class A, E-13
IP Rating IP65
Patent No. (Taiwan) M447854
