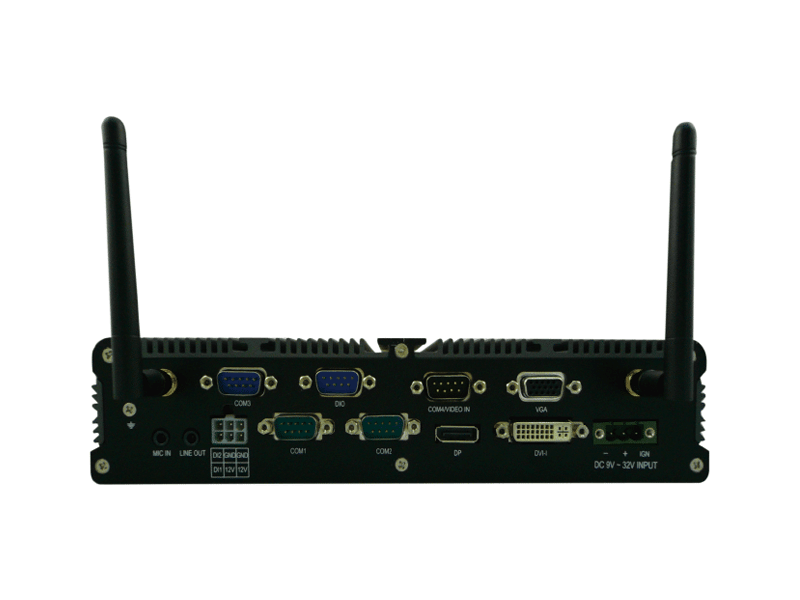

VBOX-3611

Intel Gen 6 Core i7-6600U CPU with HD 520 GPU On-Board Computer

  • Intel Core i7-6600
  • Wireless support LTE, 3.5G w/ Dual SIM Card, WLAN, GPS Dead Reckoning, GSM/GPRS, BT
  • 9V~36V DC Power Input
  • Smarter Vehicle Power Ignition for Variety Vehicle
  • Support Dual Hot Swappable SATA Storage
  • Support 1 x CAN Bus 2.0B (Optional)

Datasheet Add to Inquiry

System

CPU Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz
Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz
Intel Gen 6 Core i3-6100U 2.3GHz
Intel Gen 6 Dual Core 3955U 2.0GHz
Memory 2 x DDR4L 2133 MHz SO-DIMM up to 32GB
Chipset Intel 6th Generation Core SoC Processor
LAN Chipset Intel I210-AT Gb/s Ethernet Controllers Onboard, Support PXE and WOL
Audio Realtek ALC662 HD Codec Onboard
Watchdog Watchdog Timer Support, Offer 1 – 255 Step

Power Requirement

Power Input 9V -36V DC Power Input
Power Protection Automatics Recovery Short Circuit Protection
Power Management Vehicle Power Ignition for Variety Vehicle
Power Off Control Power off Delay Time Setting by Software and BIOS
Backup Battery Internal Battery Kit for 10 Mins Operating (Optional)
Patent No. : M447854 - Build-in Battery

Graphics

Chipset Intel HD Graphics 520
DirectX Video Acceleration (DXVA) for Accelerating Video
Processing - Full AVC/VC1/MPEG2 HW Decode
Supports DirectX 11/10.1/10/9 and OpenGL 4.0
Resolution Max Resolution (HDMI 1.4) : 4096 x 2304@24Hz
Max Resolution (DP) : 4096 x 2304@60Hz

I/O

Serial Port 4 x RS-232 (2 with RS-422/485 (Auto Direction Control))
USB Port 2 x USB 3.0 Ports, 2 x USB 2.0 Ports
LAN 2 x RJ45 Ports for GbE
Video Port 1 x DVI-I*, 1 x VGA, 1 x DP (Support Triple Independent Display)
* Use only with Single Link DVI Cables.
DIO Port 4 in and 4 out
Audio 1 x Line-out and 1 x Mic-in (Line-in optional)
SIM Card socket 2 x SIM Card sockets supported onboard with eject

Mechanical & Environmental

Dimension (LxWxH) 250 x 150 x 55 mm
Weight 1.98 kg
Relative Humidity 0 ~ 95% (non-condensing)
Operating Temp. -40 ~ 70°C (Default CPU 17Watt)
Storage Temp. -40 ~ 80°C
Certifications CE, FCC Class A, EMark Compliance, EN50155, EN50121
Patent No. M447854, M448011
