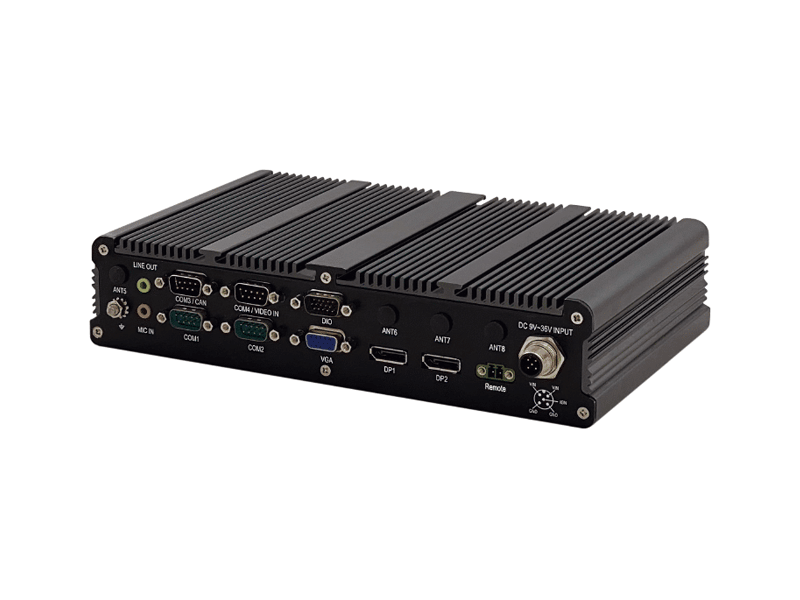

VBOX-3620-M12X

Intel Gen6 Core i7-6600U CPU with Isolated Input 3 x GbE and 1 x iAMT In-Vehicle Computer

  • Intel Core i7-6600U / i5-6300U / i3-6100U
  • Wireless support LTE, 3.5G w/ Dual SIM Card, WLAN, GPS Dead Reckoning, GSM/GPRS, BT
  • 3 x GbE Including 1 with iAMT
  • Isolated wide Input Range 9 - 36VDC
  • Smarter Vehicle Power Ignition for Variety Vehicle
  • Dual Hot Swappable SATA bays & 1 x SATA DOM, support RAID 0/1/5
  • EN50155 Tx

Datasheet Add to Inquiry

System

CPU Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz
Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz
Intel Gen 6 Core i3-6100U 2.3GHz
Intel Gen 6 Dual Core 3955U 2.0GHz
Memory 2 x SO-DIMM DDR4 up to 32GB
LAN Chipset 2 x Intel I210-AT and 1 x Intel i219LM
Audio Realtek ALC662 HD Codec Onboard
Watchdog Watchdog Timer Support, Offer 1 – 255 Step

Power Requirement

Power Input 9V -36V DC Power Input
Power Protection Automatics Recovery Short Circuit Protection
Power Management Vehicle Power Ignition for Variety Vehicle
Power Off Control Power off Delay Time Setting by Software and BIOS
Backup Battery Internal Battery Kit for 10 Mins Operating (Optional)
Patent No. : M447854 - Build-in Battery

Graphics

Chipset Intel HD Graphics 520
DirectX Video Acceleration (DXVA) for Accelerating Video
Processing - Full AVC/VC1/MPEG2 HW Decode
Supports DirectX 11/10.1/10/9 and OpenGL 4.0
Resolution Up to 4096 X 2304@60Hz

I/O

Serial Port 2 x RS-232/422/485, 2 x RS-232 w/Isolation (Auto Direction Control)
USB Port 2 x USB 3.0 Ports, 2 x USB 2.0 Ports
LAN 3 x 10/100/1000 Mb/s w/ M12 x-code (1 port with iAMT)
Video Port 2 x DP, 1 x VGA (support Triple Independent Display)
DIO Port 8 x GPI and 4 x GPO w/ isolation
Audio 1 x Line-out and 1 x Mic-in (Line-in optional)
SIM Card Socket 2 x SIM Card Sockets supported onboard with eject
6 x SIM Card Sockets (Optional)
Expansion Bus 3 x Mini-Card Slots and 1 x M.2 Slot

Mechanical & Environmental

Dimension (LxWxH) 250 x 150 x 55 mm
Weight 1.90 kg
Relative Humidity 0 ~ 95% RH
Operating Temp. -40 ~ 70°C (Default CPU 17Watt)
Storage Temp. -40 ~ 80°C
Certifications CE, FCC Class A, EN50155, EN50121
Patent No. M447854, M448011
