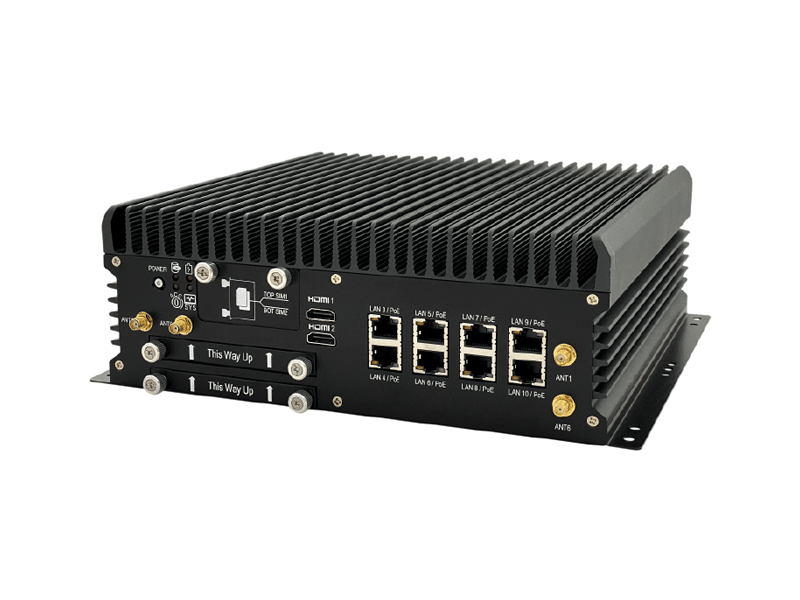

ABOX-5200(P)
Intel® 8th Gen Core i7/i5/i3 CPU w/ 10 x GbE/ 3 x COM/ 3 x DP/ 4 x USB 3.0/ 9-48V AI GPU Computing
System
Processor |
Intel® Gen8 Core i7-8700T (12M Cache 2.4GHz up to 4.0GHz |
---|---|
Memory |
2 x DDR4 2400 MHz SO-DIMM up to 32GB |
Watchdog |
1 ~ 255 Level Reset |
TPM |
2.0 |
Graphics
Graphics Engine |
Intel® UHD Graphics 630 |
---|---|
DisplayPort |
3 |
Resolution |
Max Resolution (DP 1.2) : 4096 x 2340 @ 60Hz |
Audio
Line-out |
1 |
---|---|
Mic-in |
1 |
Line-in |
1 |
Ethernet
LAN Chipset |
9 x Intel® i210-AT and 1 x i219LM (iAMT9.5 w/ i5, i7 only) Gb/s |
---|---|
LAN |
10 x RJ45 Ports for GbE (Optional for M12 connector) |
PoE |
Optional 8 x PoE total Max. 100W |
I/O
Serial Port |
3 x RS-232/422/485 (Optional Max 4 x RS-232/422/485) |
---|---|
USB |
4 x USB 3.0 Ports |
DIO |
8 x GPI and 4 x GPO |
Storage
SSD/HDD |
2 x 2.5″ drive bay for SATA Type RAID 0, 1, 5 |
---|---|
eSATA |
1 |
Expansion
Mini PCI Express |
3 x Full Mini-PCIe Slots |
---|---|
M.2 |
1x M.2 A-E Key 2230 slot |
Power
Power Input |
9V – 48V DC Power Input |
---|---|
Power Protection |
Automatics Recovery Short Circuit Protection |
Smart Ignition |
Vehicle Power Ignition for Variety Vehicle |
Power-off Delay Control |
Power off Delay Time Setting by BIOS and Software |
Backup Battery Solution |
Internal Battery Kit for 10 Mins Operating (optional) |
Mechanical
Dimension |
260(L) x 250(W) x 95(H) mm |
---|---|
Weight |
5190g (Barebone) |
Construction |
Aluminum Alloy |
Mounting |
Wall-mount |
Environment
Relative Humidity |
10% RH – 90% RH (non-condensing) |
---|---|
Operating Temp. |
-40°C ~ 70°C, ambient w/ 0.6m/s airflow |
Storage Temp. |
-40°C ~ 80°C |
Vibration & Shock |
IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis |
Certification
Certification |
CE, FCC Class A, E13 |
---|
Operational System
Windows |
Win10 LTSC 1809 |
---|---|
Linux |
Ubuntu 18.04 64bit |
Ordering Information
Mode Number |
ABOX-5200P-i7 Optional for i5/i3/C1 (with PoE) |
---|---|
Description |
Intel® 8th Gen Core i7/i5/i3 CPU w/ 10 x GbE/ 3 x COM/ 3 x DP/ 4 x USB 3.0/ 9-48V AI GPU Computing |
State of Origin |
Taiwan |
