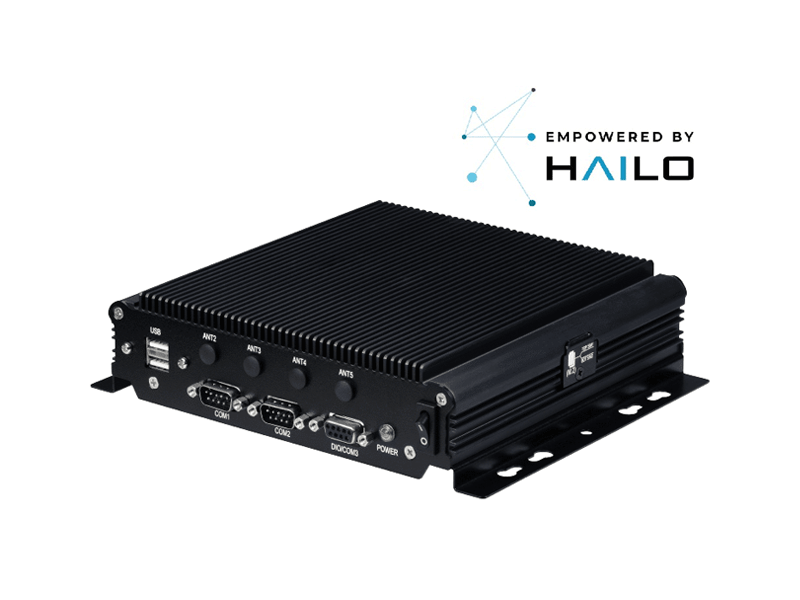

SBOX-2602
11th Gen Intel® Core™ i7-1185G7E with 2x LAN/ 2x HDMI 2.0b/ 1x DVI-D/ 2x COM/ DC 12V Fanless Box PC
System
Processor |
Intel® 11th Gen Core™ i7-1185G7E up to 2.8 GHz* |
---|---|
Memory |
1 x DDR4 SO-DIMM up to 32GB |
Watchdog |
1 ~ 255 Level Reset |
TPM |
2.0 |
Graphics
Graphics Engine |
Intel® Iris® Xe / UHID Graphics (for Celeron® 6305E only |
---|---|
HDMI |
2 |
DVI-D |
1 (Use only with Single Link DVI Cables) |
Audio
Line-out |
1 |
---|---|
Mic-in |
1 |
Ethernet
LAN Chipset |
1 x Intel® 2.5GbE supports vPro for i5 & i7 SKU |
---|---|
LAN |
2x RJ-45 ports (1 x 2.5GbE, 1x GbE) |
I/O
Serial Port |
2 x RS-232/422/485 (Optional 3rd serial port) |
---|---|
USB |
2 x USB 3.2 Gen 2 |
GPIO |
4 In and 4 Out GPIO Ports (5V/100mA) |
SIM Socket |
2 x SIM Card Socket Support Onboard |
Antenna |
5 x SMA Type External Antenna Pre-cut Hole |
Storage
Type |
1 x SATA Connector for 2.5″ SATA HDD/SSD |
---|---|
M.2 |
( Support NVMe and SATA SSD w/auto-detection) |
Expansion
Mini PCI Express | |
---|---|
M.2 |
1 x M.2 3042/3052 Key B for 5G/LTE modem |
Power
Power Input |
DC 12V Input with DC-Jack |
---|
Mechanical
Dimension |
210(L) x 171 (W) x 50(H) mm (Wall Mount Bracket Included) |
---|---|
Weight |
1600g |
Construction |
Aluminum Alloy |
Mounting |
Wall-mount (Optional VESA and Din Rail Mounting Kit) |
Environment
Relative Humidity |
10% RH – 90% RH (non-condensing) |
---|---|
Operating Temp. |
-30°C ~ 60°C, ambient w/ 0.6m/s airflow |
Storage Temp. |
-40°C ~ 85°C |
Certification
Certification |
CE, FCC Class A |
---|
Operational System
Windows |
Win 10 IoT 64-bit |
---|---|
Linux |
Ubuntu 20.04 64-bit |
Ordering Information
Mode Number |
SBOX-2602-i7, SBOX-2602-i5, SBOX-2602-i3, SBOX-2602-C1 |
---|---|
Description |
Intel® 11th Gen Core TM i7-1185G7E CPU w/ 2x LAN/ 2x HDMI 2.0b/ 1x DVI-D/ 2x COM/ DC 12V/Fanless Box PC |
State of Origin |
Taiwan |
