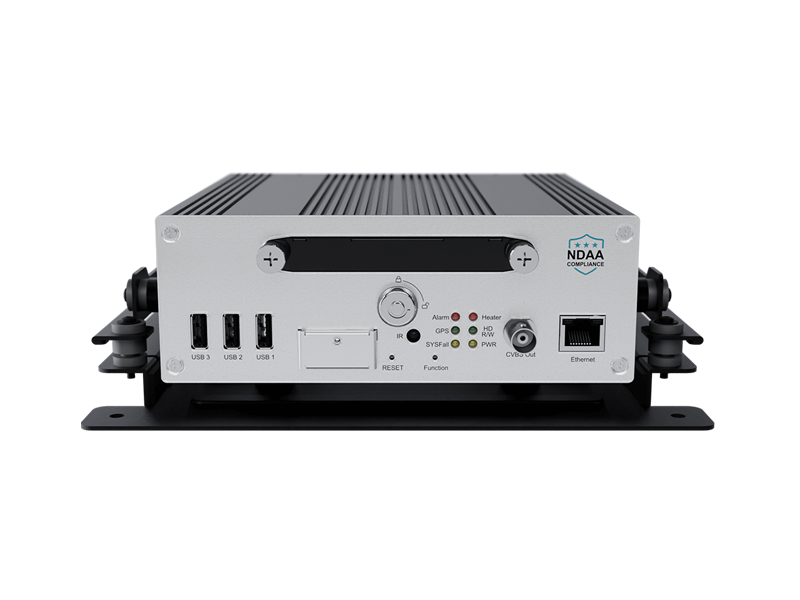

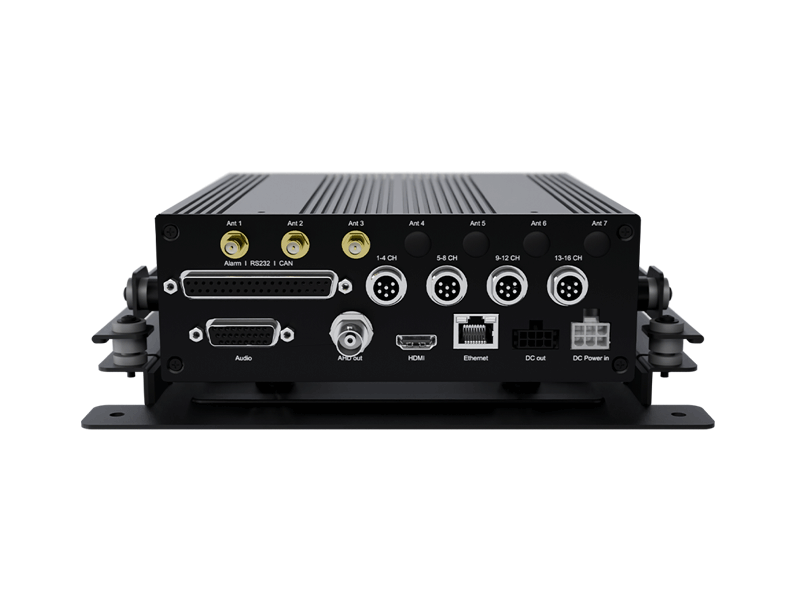

EMV1600 FHD-AI (Preliminary)
16 Channels 1080p Full HD Hybrid Mobile DVR
System
| Number of Channels |
Up to 24CH (Hybrid: 8 Analog + 8 IP); Up to 16CH (All Analog) |
|---|---|
| Video Compression |
H.264 / H.265 |
| Audio Inputs |
16 |
| Audio Outputs |
1 (RCA) |
| Main Monitor |
HDMI x 1 |
| Call Monitor |
BNC x 1 / AHD x 1 |
| Recording Resolution |
Analog: 1080p / 720p / CIF / D1; IP: 1080p / 720p |
| Recording Mode |
Event, Normal + Event, Schedule |
| Recording Rate NTSC |
Analog/IP: 15fps @1080p; 30fps @ all other resolutions; |
| Recording Rate PAL |
Analog: 12fps @1080p; 25fps @all other resolutions; |
| Playback Search |
Time / Date, Event Search / Snapshot Search |
| Alarm Inputs |
8 |
| Alarm Outputs |
4 |
| Video Loss Detection |
Yes |
| Event Alarm |
Yes |
| Ethernet |
1GbE x 2 (RJ-45 x 2) |
| WiFi |
Supported (Optional) |
| 4G / 5G |
Supported (Optional) |
| GPS |
Supported (Optional) |
| HDD |
2.5" SSD x 1 (Max. 8TB) |
| SD Card |
SD/SDHC Card (Max. 512 GB) |
| Interfaces |
RJ-45 x 2, RS232 x 2, RS485 x 1, USB x 3, CANBUS x 2 |
| GSensor |
3-Axis G-Sensor embedded |
| System Control |
IR Remote Control, Mouse |
| PTZ Control |
Yes |
| Power Source |
9-36 VDC |
| Power Consumption |
20W / 60W (Heater On) |
| Operating Temperature |
-20°C~55°C / -4°F~131°F |
| Dimensions (W x D x H) |
229.6 x 218 x 75.4mm / 9.04" x 8.58" x 2.9" (With Anti-Vibration Bracket) |
| Weight |
With Anti-Vibration Bracket: 2.6kg / 5.73lb |
| Certificates |
CE, FCC, EN50155 (shock & vibration) |
| Operating System |
Win10 (64-bit) / Win11 (64-bit) |
| CPU |
Intel Core I3-10100 |
| RAM |
8GB |
| Graphic |
Intel Iris Graphics |
| LAN Speed |
10 / 100 / 1000 Mbps |
| Web Browser |
Edge (IE Mode Enabled) |
