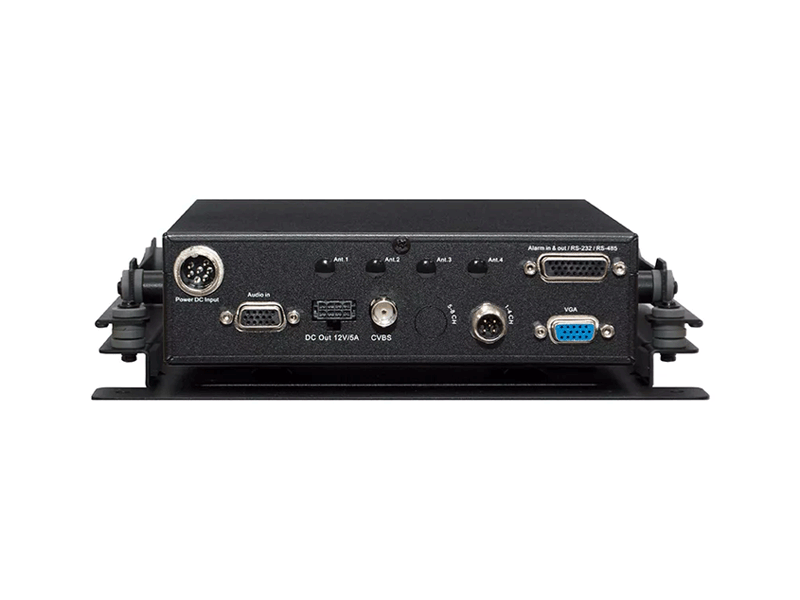

EMV400 FHD-N
4 Channels 1080p Full HD Mobile DVR
System
| Number of Channels |
4 CH |
|---|---|
| Video Compression |
H.264 / H.265 |
| Audio Inputs |
4 |
| Audio Outputs |
1 (RCA) |
| Main Monitor |
VGA x 1 |
| Call Monitor |
BNC x 1 / RCA x 1 |
| Recording Resolution |
1080p / 720p / 960H / D1 / 2CIF / CIF / QCIF |
| Recording Mode |
Event, Normal + Event, Schedule |
| Recording Rate NTSC |
30fps |
| Recording Rate PAL |
25fps |
| Pre Alarm Recording |
Yes |
| Playback Mode |
Duplex |
| Playback Search |
Time / Date, Event Search / Snapshot Search |
| Alarm Inputs |
4 / 2 |
| Alarm Outputs |
4 / 2 |
| Video Loss Detection |
Yes |
| Event Alarm |
Yes |
| Ethernet |
RJ-45 port x 1 (10/100/1000M) |
| WiFi |
Yes (Optional) |
| 4G / 5G |
3G / 4G |
| GPS |
Yes (Optional) |
| HDD |
2.5" SSD x 1 (Max. 2TB) |
| SD Card |
SD/SDHC Card (Max. 32 GB) – for alarm event backup recording only |
| Interfaces |
RJ-45 x 1, RS-232 x 3, RS-485 x 1, USB x 3 |
| GSensor |
3-Axis G-Sensor embedded |
| System Control |
IR Remote Control, Mouse, Web UI |
| PTZ Control |
Yes |
| Power Source |
9-36 VDC |
| Power Consumption |
20W / 60W (Heater On) |
| Operating Temperature |
-40°C~55°C / -40°F~131°F |
| Dimensions (W x D x H) |
229.6 x 218 x 63.4mm / 9.04" x 8.58" x 2.5" (With Anti-Vibration Bracket) |
| Weight |
With Anti-Vibration Bracket: 2.6kg / 5.73lb |
| Certificates |
CE, FCC, EN50155, SAE-J1455 (shock & vibration only) |
| Operating System |
Windows XP (32-bit) / Win7 (32 and 64-bit) |
| CPU |
Intel Core I3-2100 |
| RAM |
2GB |
| Graphic |
Intel HD 2000 |
| LAN Speed |
10 / 100 / 1000 Mbps (RJ45) |
| Web Browser |
IE11 and later, Firefox 50 and earlier, Chrome 44 and earlier, EF browser |
