IBOX-602P-IP66
NVIDIA® Jetson Orin™ NX Rugged IP66 PoE Edge AI Computer
System
| Module |
NVIDIA® Jetson Orin™ NX 16GB |
|---|---|
| Network |
1 x Intel® 2.5GbE, 1 x SoM Built-in GbE |
| Security |
Platform Security Controller (PSC), Security Engine (SE) |
| Watchdog |
The self-reset mechanism for unresponsive system |
Interface
| Video |
1 x HDMI Type-A output supports 4K resolution (with a cover) |
|---|---|
| Audio |
1 x HD audio from the HDMI® |
| Ethernet |
2 x M12 X-coded connectors |
| PoE |
2 x PoE PSE Class 3 (15 watts) |
| Camera |
2 x GMSL-2 via FAKRA connectors |
| CAN Bus |
1 x CAN FD via M8 connector |
| USB |
1 x USB 3.2 (with a cover) |
| DIO |
3 x DI, 4 x DO (12VDC/100mA) via M8 connector |
| Serial Port |
1 x RS-232/422/485 via M8 connector |
| Mgmt. Port |
1 x USB Type-C for System Recovery (Device only) |
| Antenna |

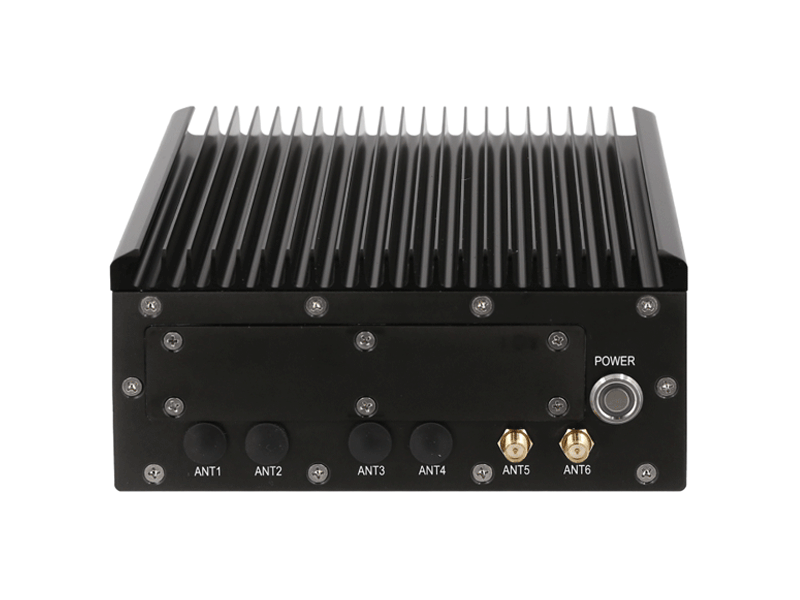

6 x Antenna holes with protection caps |
Internal Expansion
| M.2 |
1 x M.2 3042/52 Key B supports WWAN w/ Dual Nano SIM |
|---|
Storage
| Type |
1 x M.2 2280 Key M supports NVMe SSD (Pre-installed system BSP) |
|---|
Software
| Operating System / SDK |
NVIDIA® JetPack 6.2 above, including Jetson Linux, and NVIDIA® development tools |
|---|
Power
| Power Input |
DC 9V-60V for 12/24/48V via M12 K-coded |
|---|---|
| Power Protection |
OCP, OVP, Surge Protection, and Reversed Polarity Protection |
| Power Management |
Supports Smart Power Management |
| RTC Battery |
High-capacity coin cell battery for RTC |
| Battery (UPS) |
Backup battery for system power backup |
Mechanical
| Construction |
Aluminum alloy |
|---|---|
| Thermal Design |
Fanless passive cooling design |
| Mounting |
Wall Mount |
| Weight |
1.78kg |
| Dimensions |
150 (L) x 138 (W) x 66 (H) mm (6.0 x 5.5 x 5.6 inch) |
| Ingress Protection |
IP66 |
Environment
| Relative Humidity |
10% RH – 90% RH (non-condensing) |
|---|---|
| Operating Temp. |
-25°C ~ 60°C (-13°F ~ 140°F), with SSD, ambient w/ air flow 0.6m/s (ONX16 model) |
| Storage Temp. |
-40°C ~ 80°C (-40°F ~ 176°F) |
| Vibration (with SSD) |
Random – IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis |
| Shock (with SSD) |
MIL-STD-810G, Method 516.6, Procedure I, |
| Certification |
CE, FCC Class A, UKCA, E-mark, EN50155, EN45545-2 (R25) |
Ordering Information
| Mode Number |
IBOX-602P-IP66-ONX16｜NVIDIA® Jetson Orin™ NX NX 16GB / 2 x PoE / 2 x GMSL-2 / IP66 |
|---|---|
| Description |
NVIDIA® Jetson Orin™ NX NX SoM w/ 2x LAN / 2x PoE / 2x GMSL-2 / 1x CAN FD / DC 9-60V / IP66 Edge AI Computer |
| State of Origin |
Taiwan |
