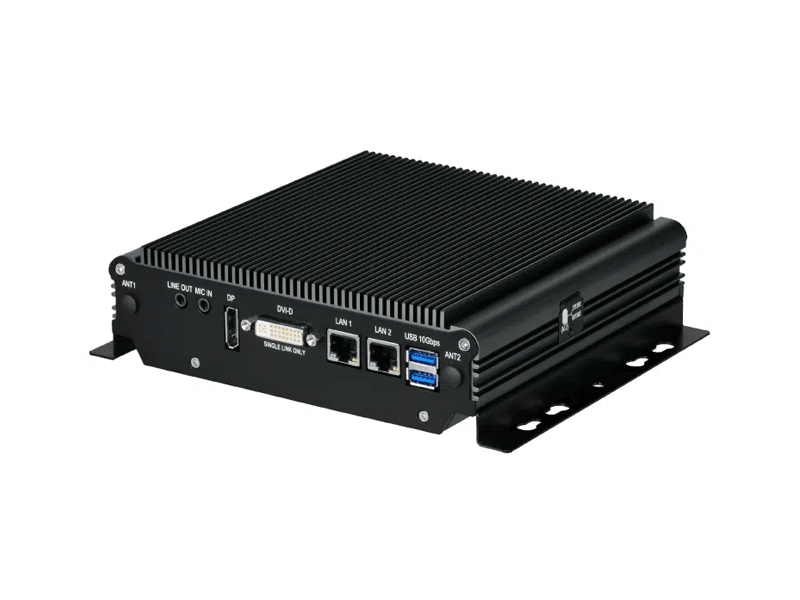

SBOX-2321
Intel Atom® x6416RE Quad-core Processor w/ 2x LAN/ 1x DP / 1x DVI-D/ 2x COM/ DC-IN 9-36V Embedded Computer
System
| Processor |
Intel Atom® x6416RE Quad-core Processor |
|---|---|
| Memory |
1 x SO-DIMM-260 Socket supports DDR4-3200 up to 32 GB |
| Graphics |
Integrated Intel® UHD up to 16 EUs |
| Ethernet |
2 x Intel® 2.5GbE support 10/100/1000/2500BASE-T (TSN H/W Ready) |
| Watchdog |
1 ~ 255 Level Reset |
| Security |
Infineon® TPM 2.0 |
I/O
| Serial Port |
2 x RS-232/422/485 (the 3rd for optional) |
|---|---|
| USB Port |
2 x USB 3.2 |
| Video Output |
1 x DP / 1 x DVI-D (*Single-link cable only) |
| Ethernet |
2 x RJ-45 for 2.5GbE |
| Audio |
2 x 3.5mm TRS Jack for Stereo MIC-in and Line-out |
| GPIO |
1 x DB-9 for 4 x DI / 4 x DO (5V / 100mA) |
| Expansion |
1 x M.2 2230 Key E Slot |
| Telecom Support |
2 x SIM Card Slots |
Storage
| Type |
1 x SATA 6Gb/s for 2.5″ SATA storage |
|---|
Power
| Power Input |
9 ~ 36VDC Terminal Block w/ OCP and OVP Protection |
|---|
Software
| Power Input |
Windows 10 IoT LTSC 64-bit, Windows 11 IoT 64-bit, Ubuntu 22.04 LTS 64-bit |
|---|
Mechanical
| Construction |
Aluminum Alloy |
|---|---|
| Mounting |
Wall-mount |
| Thermal Design |
Fanless Passive Cooling Design |
| Weight |
1,480g |
| Dimension |
182 (L) x 171 (W) x 54 (H) mm (w/o Mounting bracket) |
| Packaging |
> 98% of Sustainable/Recyclable Packaging |
Environment
| Operating Temp. |
-40°C ~ 70°C, w/ 0.6m/s airflow |
|---|---|
| Storage Temp. |
-40°C ~ 85°C |
| Relative Humidity |
10% RH – 90% RH (non-condensing) |
| Certifications |
CE, FCC Part-15 Class A |
Ordering Information
| Mode Number |
SBOX-2321-zz; zz=A4=Atom x6416RE |
|---|---|
| Description |
Intel Atom® x6416RE w/ 2x LAN/ 1x DP/ 1x DVI-D/ 2x COM/ DC-IN 9-36V Embedded Computer |
| State of Origin |
Taiwan |
