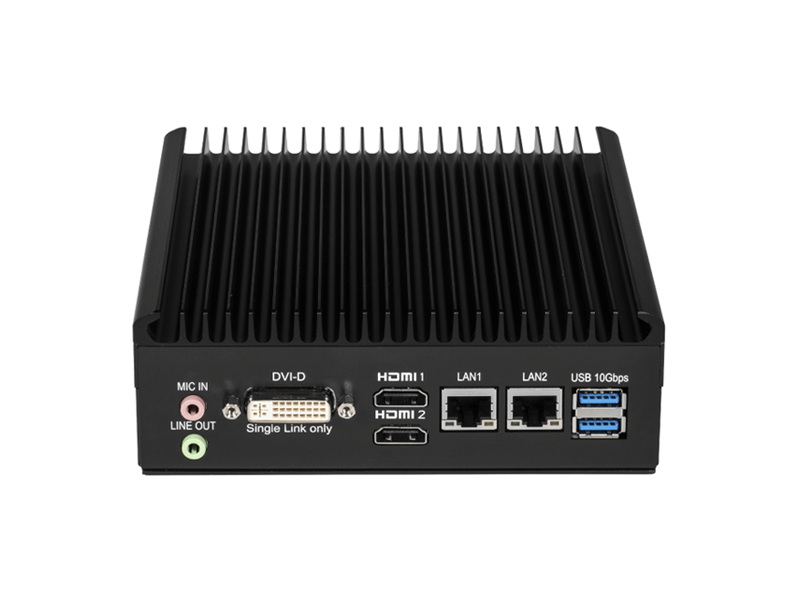

SBOX-2603-R2312
AMD Ryzen™ Embedded R2312 w/ 1x DVI-D / 2x HDMI® /2x GbE / 2x COM / DC 12V Embedded Computer
System
| Processor |
AMD Ryzen™ Embedded R2312 2C/4T Processor |
|---|---|
| Graphics |
CPU Built-in Graphics AMD Radeon™ Graphics |
| Memory |
1 x SO-DIMM DDR4-2400 up to 32GB (ECC Support with ECC DRAM) |
| Network |
2 x I210-AT |
| Security |
TPM 2.0 |
| Watchdog |
System power on/off 1 ~ 255 min setting by BIOS |
Interface
| Video |
1 x DVI-D (Single link with custom pin define) |
|---|---|
| Audio |
1 x Line-out and 1 x Mic-in |
| Ethernet |
2 x GbE RJ45 port |
| USB |
2 x USB 3.2 Gen 2 (10Gbps) |
| GPIO |
1 x GPIO port supports 8 x GPIO 5V TTL level |
| Serial Port |
2 x RS-232/422/485 |
Internal Expansion
| M.2 |
1 x M.2 3042/52 Key B supports USB 3.2 WWAN w/ Dual SIM |
|---|
Storage
| Type |
1 x M.2 2280 Key M supports NVMe or SATA SSD |
|---|
Power
| Power Input |
DC 12V only via DC Jack |
|---|
Software
| Operating System |
Windows 10 IoT Enterprise 64bit LTSC |
|---|
Environmental
| Operating Temp. |
-30 ~ 60°C, with SSD, ambient w/ air flow 0.6m/s (for barebone system) |
|---|---|
| Storage Temp. |
-40 ~ 80°C |
| Relative Humidity |
10% RH ~ 90% RH (non-condensing) |
| Certification / Standard |
CE, FCC Class A, UKCA |
Mechanical
| Construction |
Aluminum Alloy |
|---|---|
| Mounting Method |
Wall-mounting |
| Weight |
1.3Kg |
| Dimensions |
176 (L) x 120 (W) x 52 (H) mm |
Ordering Information
| Mode Number |
SBOX-2603-R2312 |
|---|---|
| Description |
AMD Ryzen™ Embedded R2312 w/ 1x DVI-D / 2x HDMI® / 2x GbE / 2x COM / DC 12V Embedded Computer |
| State of Origin |
Taiwan |
