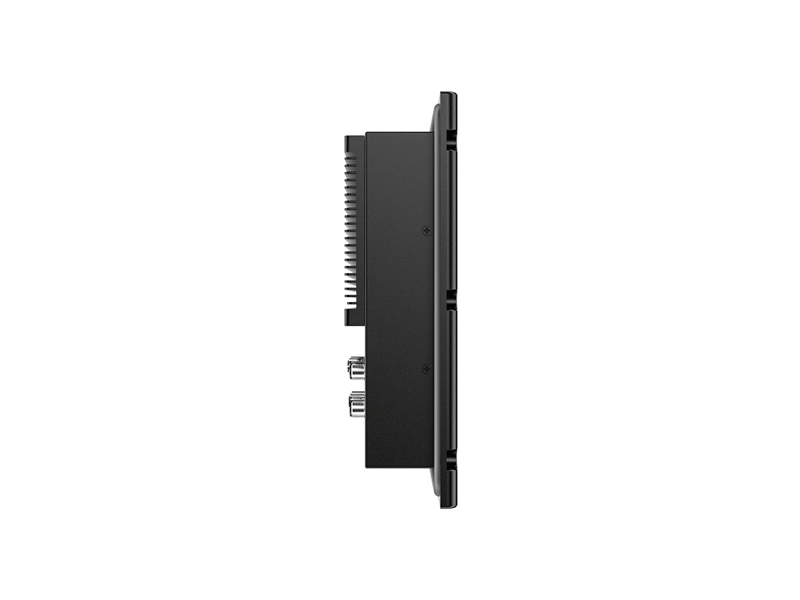

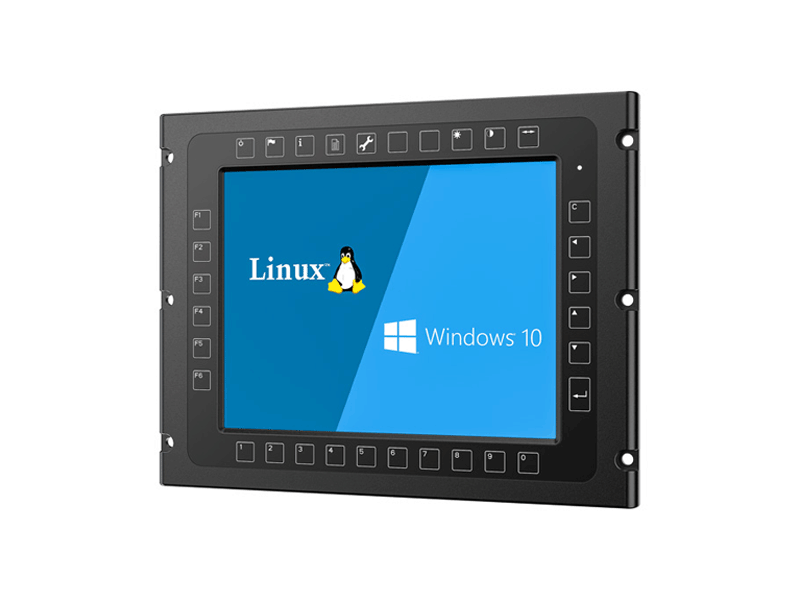

TVP-110
10.4" Fanless Panel PC with Intel® Celeron® Processor with full M12 vehicle terminal for rail train
Display
| Size |
10.4-inch |
|---|---|
| Touch Type |
Projective multi-touch capacitive screen |
| Resolution |
1024 x 768 |
| Luminance |
500 nits |
| LED Lifetime |
50000 hrs |
System
| CPU |
Intel® Quad-Core Celeron J1900 (2.0GHz) |
|---|---|
| Memory |
1 x SO-DIMM DDR3L-1333/1600 (up to 8GB) |
| Storage |
1 x Full-size Mini-PCIe for mSATA SSD |
| Operating System |
Windows 10 IoT Enterprise LTSC |
Keypad
| Keypad |
32 keys (See the manual for the definition) |
|---|

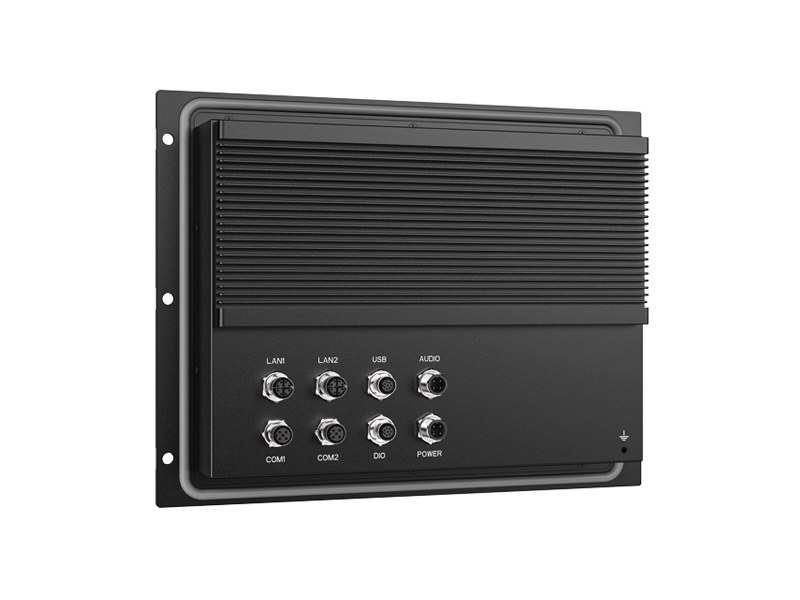

I/O Ports
| USB |
2x USB 2.0 |
|---|---|
| Serial |
2 x RS-422/485, 2500Vdc isolation |
| Ethernet |
2 x GbE LAN, 2500Vdc isolation |
| DI/DO |
4 in & 2 out, support 3.3V output, 2500Vdc isolation |
| CAN bus |
2 x CAN2.0B (Optional, compatible CAN2.0A, support J1939 protocol and in accordance with ISO 11898-1/2/3, substitute COM2) |
| Power |
1 x DC-in |
Audio
| Audio |
1 x Line-out, 1 x Mic-in |
|---|
Power
| DC Input |
DC 110V (±40% , Default, optional 24/48/72V) |
|---|---|
| Power Consumption |
28W (Typ.) |
Mechanical
| Dimension (W x D x H) |
305 x 235 x 65 mm |
|---|---|
| Weight |
3.2 kg |
| Housing |
Panel-mount |
Environment
| Operating Temp. |
-40 to 70°C |
|---|---|
| Relative Humidity |
5%-90%,@ 40°C (non-condensing) |
| Vibration |
IEC 61373 |
| IP Rating |
IP65 (I/O interface must be closed) |
| Certification |
CE, FCC |
