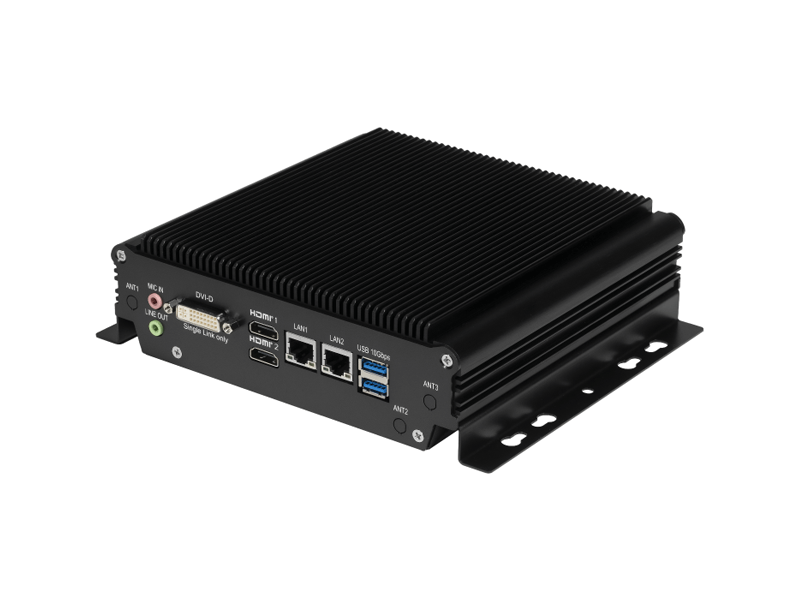

VBOX-3121-R2312
AMD Ryzen™ Embedded R2312 w/ 1x DVI-D / 2x HDMI® / 2x GbE / 4x COM / DC 9-60V In-Vehicle Computer
The AMD Ryzen™ Embedded R2000 Series SoCs boost the Ryzen™ Embedded mid-range processor portfolio to new heights by bringing together the “Zen+” x86 core architecture with high-performance AMD Radeon™ graphics. Compared to the legacy R1000 Series, the R2000 Series provides up to 2X the CPU core count1, Radeon™ graphics supporting up to 4 independent 4K displays and up to 2X the I/O connectivity2 targeting Industrial and Robotics Systems, Machine Vision, IoT, Thin Clients and more.
With thermal design power (TDP) spanning from 12W to 54W, AMD Ryzen™ Embedded R2000 Series SoCs provide thermal agility for compact system designs to help streamline design efficiencies and BOM costs. They provide pin-to-pin package compatibility and a common software foundation with legacy AMD Ryzen™ Embedded R1000 and V1000 Series SoCs while delivering significant performance and connectivity boosts from previous R-Series families.
System
| Processor |
AMD Ryzen™ Embedded R2312 2C/4T Processor |
|---|---|
| Graphics |
CPU Built-in Graphics AMD Radeon™ Graphics |
| Memory |
1 x SO-DIMM DDR4-2400 up to 32GB (ECC Support with ECC DRAM) |
| Network |
2 x I210-AT |
| Security |
TPM 2.0 |
| Watchdog |
System power on/off 1 ~ 255 min setting by BIOS |
Interface
| Video |
1 x DVI-D ((Only support Single Link DVI-D cables) |
|---|---|
| Audio |
1 x Line-out and 1 x Mic-in |
| Ethernet |
2 x GbE RJ45 port |
| USB |
2 x USB 3.2 Gen 2 (10Gbps) |
| DIO |
4 x DI (9~60V) / 4 x DO (5V / 100mA) |
| Serial Port |
4 x RS-232/422/485 |
Internal Expansion
| M.2 |
1 x M.2 3042/52 Key B supports USB 3.2 WWAN w/ Dual SIM |
|---|---|
| mPCIe |
2 x mPCIe full size slot supports USB 2.0 |
Storage
| Type |
1 x M.2 2280 Key M supports NVMe or SATA SSD |
|---|
Power
| Power Input |
DC 9 ~ 60V input |
|---|---|
| Power Protection |
Over voltage and reverse polarity protection |
| Power Management |
Ignition Management for Variety Vehicle |
| Power Management |
Internal backup battery Kit for about 10 mins operating |
Software
| Operating System |
Windows 10 IoT Enterprise 64bit LTSC |
|---|
Environmental
| Operating Temp. |
-40 ~ 60°C, with SSD, ambient w/ air flow 0.6m/s (for barebone system) |
|---|---|
| Storage Temp. |
-40 ~ 80°C |
| Relative Humidity |
10 ~ 90% @ 40ºC (non-condensing) |
| Certification / Standard |
CE, FCC Class A, UKCA, E-Mark |
| Vibration (with SSD) |
MIL-STD-810G, Method 514.6, Procedure I, Category 4 with SSD |
| Shock (with SSD) | MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD |
Mechanical
| Construction |
Aluminum Alloy |
|---|---|
| Mounting Method |
Wall-mounting |
| Weight |
1.9Kg |
| Dimensions |
210 (L) x 171 (W) x 56 (H) mm |
Ordering Information
| Mode Number |
VBOX-3123-R2312 |
|---|---|
| Description |
AMD Ryzen™ Embedded R2312 w/ 1x DVI-D / 2x HDMI® / 2x GbE / 4x COM / DC 9~60V In-Vehicle Computer |
| State of Origin |
Taiwan |
