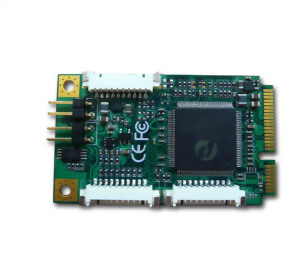

VDB-310

4ch Mini-PCIe Video Capture Card support 4 CCTV Cameras input and 4 MIC input at the same time. It’s a 4 channels solution (120/100fps) in the market

Mini-PCIe (Mini Card) Interface

Up to 4-channel Video Inputs

Support D1, Half-D1, CIF Resolution

Windows Driver & DK Provide

Datasheet

Dimension	30 x 50.95 mm
Interface	Mini card (PCIe x 1)
ADC	10BITS
Video Input	4CH
Audio Input	4CH
Audio Format	MONO / 8 ~ 16BITS / 8000 ~ 48000HZ
WatchDog	1~255 Level
Board Temp.	40C°C
SDK	VC++ / .NET / BCB / VB V4L2
VGA	1024 x 768, DirectX 9.0c Compatible Graphic Card

Operating System	Win XP / Vista / 7 / 10, Linux 2.6.20 or Higher ( 32 Bits and 64 Bits)

Format	YV12,NV12,YUY2,RGB24,RGB32
Resolution	NTSC 720×480@30FPS 704×480@30FPS 640×480@30FPS 720×240@30FPS 704×240@30FPS 640×240@30FPS 360×240@30FPS 352×240@30FPS 320×240@30FPS	PAL 720×576@25FPS 704×576@25FPS 640×576@25FPS 720×288@25FPS 704×288@25FPS 640×288@25FPS 360×288@25FPS 352×288@25FPS 320×288@25FPS

Format	MPEG4 / H.264 (Software Compression)
Resolution (Dual Stream)	NTSC 720×480@30FPS 704×480@30FPS 640×480@30FPS 720×240@30FPS 704×240@30FPS 640×240@30FPS 360×240@30FPS 352×240@30FPS 320×240@30FPS	PAL 720×576@25FPS 704×576@25FPS 640×576@25FPS 720×288@25FPS 704×288@25FPS 640×288@25FPS 360×288@25FPS 352×288@25FPS 320×288@25FPS

Mode Number	573100071090
Description	4-ch Mini-PCIe video capture card with Software Develop Kit
State of Origin	Taiwan
