Video Capture Cards

4096×2160p@60/50fps

1x12G-SDI

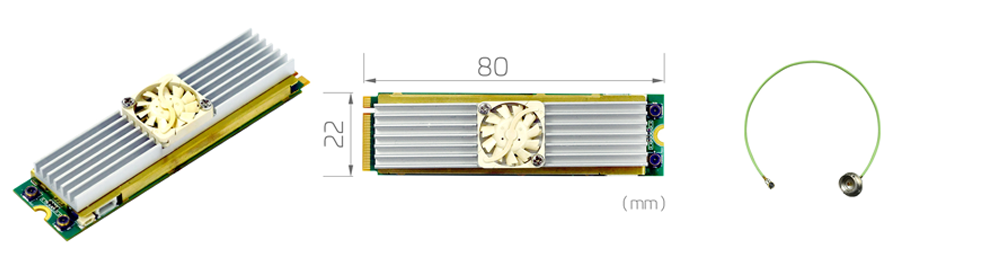

22×80 (mm) M.2 Type M

M.2 (PCIe×4)

12G-SDI Loop-Through, Multi Instances, Multi Devices

Single-Link 12G-SDI

12G-SDI (Loop-Through)

Capture/Preview :
4:4:4 8Bit RGB24
4:4:4 8Bit RGB32
4:2:2 8Bit YUY2
4:2:0 8Bit YV12, NV12
4:2:0 10Bit P010

Video, Audio and VANC Capture
Video Cropping and Scaling
Auto Signal Detection
Deinterlace Engine
Multi Instances

12G-SDI :
4096×2160@60/50fps
3840×2160@60/50fps
6G-SDI :
4096×2160@30/25/24fps
3840×2160@30/25/24fps
SDI :
1920×1080p@60/50fps
HD-SDI :
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
SD-SDI :
720×480i@60fps
720×576i@50fps

1×Stereo Embedded Audio

Stereo / 16-bit / 32000 ~ 48000Hz

vMix, OBS, ZOOM, Skype, Teams, Discord, Slack, Cisco Webex, GoToMeeting
* DirectShow/V4L2 Compatable Software Supported

Windows and Linux SDK

Windows 7/Windows 8/Windows 8.1/Windows 10
Linux 4.8 or Higher ( 32-bit and 64-bit )
Linux ARM
nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX
