Maximizing Safety and Stability for Rolling Stock with SINTRONES’ RBOX-1001-M12X

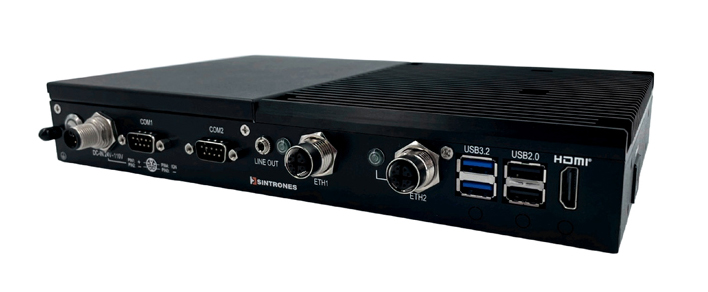

SINTRONES Technology Corp., a leading provider of embedded and in-vehicle computing solutions, unveils the RBOX-1001-M12X, an EN 50155-compliant rolling stock computer with a built-in galvanic isolation power system that supports a wide input voltage range from DC 24V to 110V. Designed for streamlined installation, easy maintenance, and equipped with Intel Atom® x7000RE processor and essential I/O interfaces, the RBOX-1001-M12X is an ideal choice for rolling stock applications that require consistent and safe operation.
Committed to Keeping Rolling Stock on the Move
Built to withstand extreme conditions, the RBOX-1001-M12X is equipped with M12 connectors for robust connection, and an industrial-grade processor and Ethernet controllers capable of operating in temperatures ranging from -40°C to 70°C, while also fulfilling the anti-vibration and anti-shock requirements of EN 61373 and MIL-STD-810H.
Built for Installation Flexibility and Space Efficiency
The RBOX-1001-M12X is intentionally designed with a height of less than 44 mm, making it rack mountable on a 1U server for space saving. Additionally, it features removable top and bottom covers that provide easier access for expansion modules installation and RTC battery replacement, significantly reducing maintenance effort and cost.
Dynamic Communications and Data Transfer without Disruptions
To ensure real-time communications and seamless data transmission on the move.
Key features of the RBOX-1001-M12X features:
Intel Atom® x7000RE processor
Dual 2.5GbE for uplink network connection
Dual M.2 2280 slots for NVMe SSDs to expand operating system and video storage capacity for onboard surveillance applications
Dual COM ports for peripherals control and management
Two M.2 expansion modules for WLAN and WWAN connectivity, or GNSS positioning and navigation
Dual SIM cards for seamless switch between different service providers based on network availability
Learn more about RBOX-1001-M12X, please visit RBOX-1001-M12X or email sales@sintroncorp.com.
