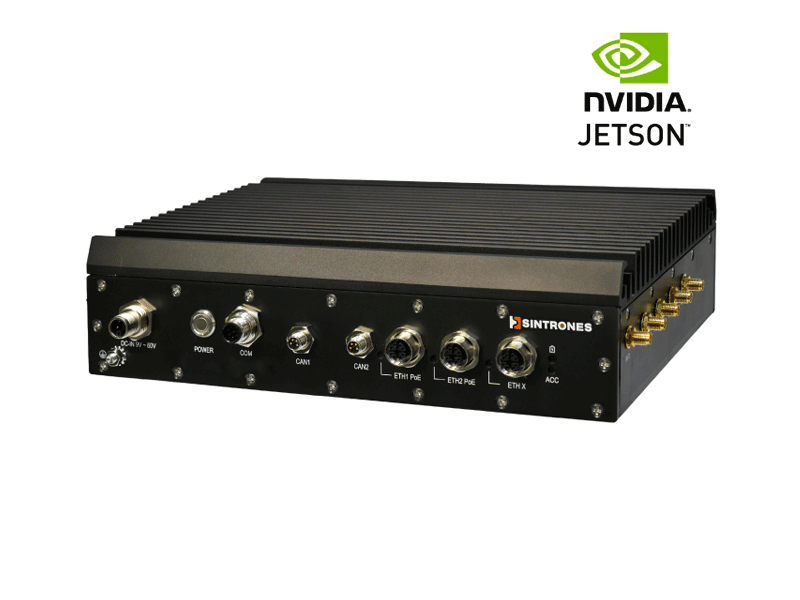

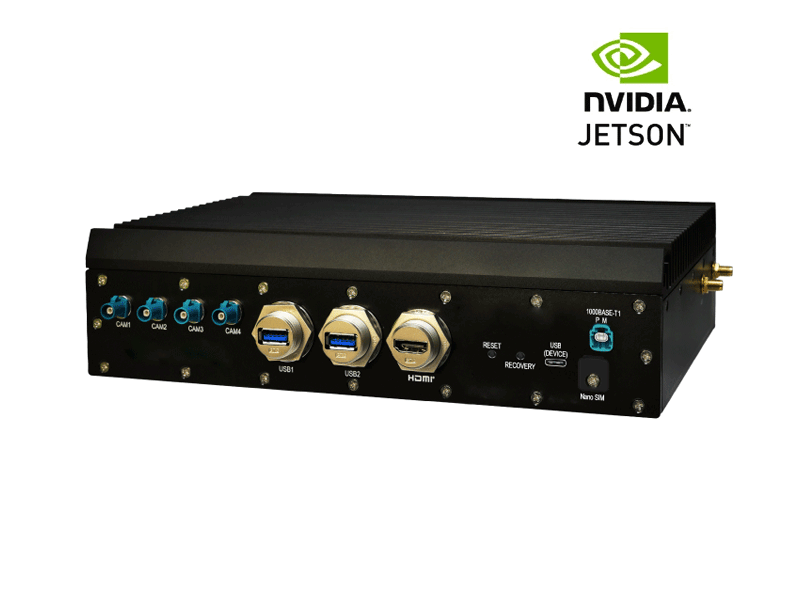

IBOX-650P-T1
NVIDIA® Jetson AGX Orin™ Edge AI Embedded Computer with T1 Automotive Ethernet
System
| Processor |
NVIDIA® Jetson AGX Orin™ 64GB – 275 TOPS |
|---|---|
| Network |
1 x Marvell® T1, 1 x Marvell® Industrial 10GbE |
| Security |
Platform Security Controller (PSC), Security Engine (SE) |
| Watchdog |
The self-reset mechanism for unresponsive system |
Interface
| Ethernet |
1 x H-CMTD T1 connector, 3 x M12 X-coded connectors (Phoenix Contact®) |
|---|---|
| USB |
2 x USB Type-A connector for USB 3.2 |
| Video |
1 x HDMI Type-A connector for video output |
| Audio |
1 x HD Audio from the HDMI |
| Serial Port |
1 x RS-232/422/485 via M12 connector |
| CAN Bus |
2 x USB Type-A connector for USB 3.2 |
| Mgmt. Port |
1 x USB Type-C for System Recovery (Device only) |
| Antennas |
7 x Antenna holes |
Internal Expansion
| M.2 |
1 x M.2 3042/52 Key B slot (USB3.0) with a Nano SIM Card Slot |
|---|---|
| mPCIe |
1 x mPCIe Full-size slot (USB 2.0 supported) |
Storage
| Type |
1 x Internal 64GB eMMC (Pre-installed system BSP) |
|---|
Software
| Operating System / SDK |
NVIDIA® JetPack 5.1.3 above, including Jetson Linux, and NVIDIA® development tools |
|---|
Power
| Power Input |
DC 9V-60V for 12/24/48V via M12 K-coded connector (Phoenix Contact®) |
|---|---|
| Power Protection |
OCP, OVP, Surge Protection, and Reversed Polarity Protection |
| Power Management |
Supports Smart Power Managemen |
| RTC Battery |
High-capacity coin cell battery for RTC |
| Battery (UPS) |
Backup battery for system power backup |
Mechanical
| Dimension |
300 (L) x 190 (W) x 77.5 (H) mm (11.9 x 7.5 x 3.06 inch) |
|---|---|
| Weight |
5,000g |
| Construction |
Aluminum Alloy |
| Mounting |
Wall Mount |
| Ingress Protection |
IP40 |
Environment
| Relative Humidity |
10% RH – 90% RH (non-condensing) |
|---|---|
| Operating Temp. |
-25°C ~ 70°C (-13°F ~ 158°F), with SSD, ambient w/ air flow 0.6m/s (ONX8 model) |
| Storage Temp. |
-40°C ~ 80°C |
| Vibration (with SSD) |
Random – IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis • MIL-STD-810H – Method 514.6, Procedure I, Category 4 |
| Shock (with SSD) |
MIL-STD-810H – Method 516.6, Procedure I, trucks and semi-trailers=15G (11ms) with SSD |
| Certification |
CE, FCC Class A, E-Mark, ECE R118, EN50155*, EN45545-2 (R25) |
Ordering Information
| Mode Number |
IBOX-650P-T1-01-JAO64｜NVIDIA® Jetson AGX Orin™ 64GB / 1 x T1 / 1 x 10GbE / 2 x PoE / 4 x GMSL-2 |
|---|---|
| Description |
NVIDIA® Jetson AGX Orin™ 64GB SoM w/ 1 x T1 / 1 x 10GbE / 2 x 2.5GbE / 2x PoE / 4 x GMSL-2 / 2 x CAN FD / DC 9-60V / Edge AI Computing |
| State of Origin |
Taiwan |
