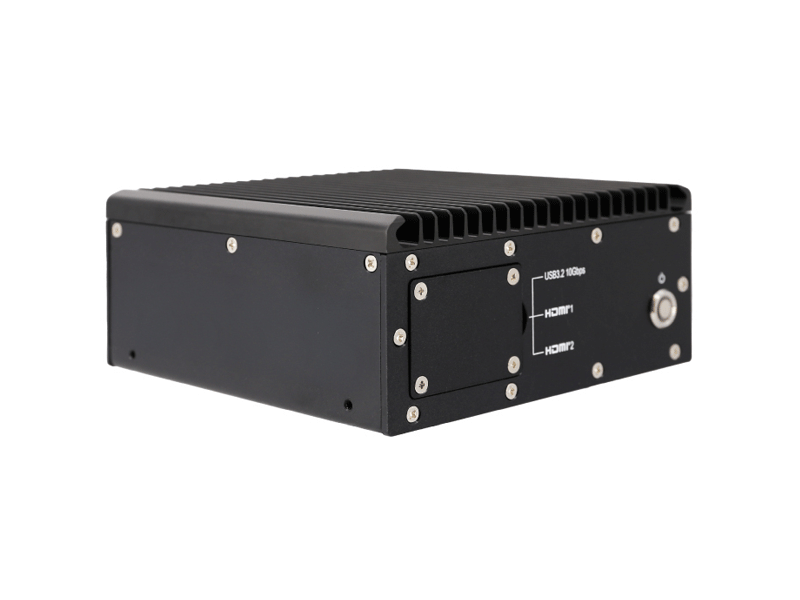

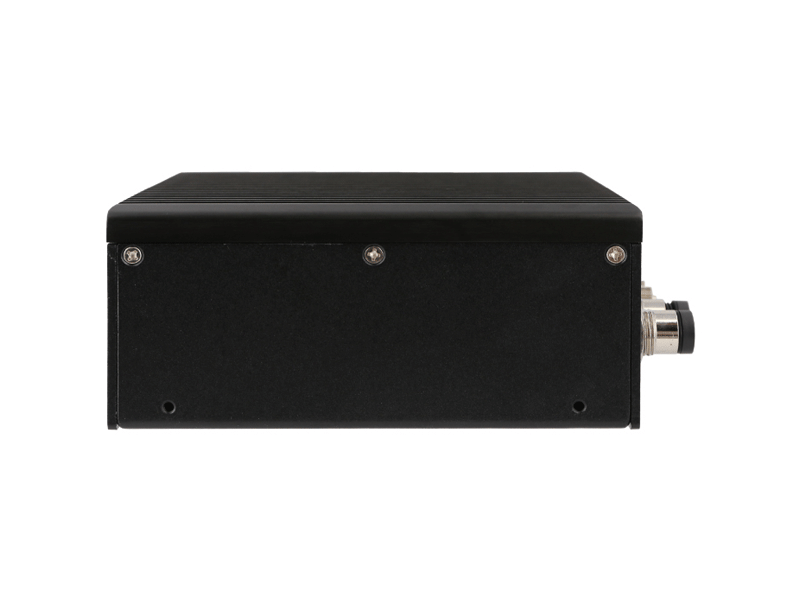

SBOX-2624P-IP66
AMD Ryzen™ Embedded R2312 wwith 2x HDMI® / 2 x GbE PoE / 2 x COM / DC-IN 9-36V / IP66 Waterproof Computer
System
| Processor |
AMD Ryzen™ Embedded R2312 2C/4T Processor |
|---|---|
| Graphics |
CPU Built-in Graphics AMD Radeon™ Graphics |
| Memory |
1 x SO-DIMM DDR4-2400 up to 32GB (ECC Support with ECC DRAM) |
| Security |
TPM 2.0 |
| Watchdog |
System reset 1 ~ 255 sec. or min. settings in BIOS |
Interface
| Video |
2 x HDMI® supports 4K@60Hz as specified in HDMI 2.0b |
|---|---|
| Ethernet |
2 x GbE* from Marvell Ethernet Switch w/ PoE (PSE Class 3: 15W) via M12 X Code |
| USB |
2 x USB 3.2 Gen 2 (10Gbps) w/o IP66 |
| DIO |
3 x DI (9-36VDC), 4 x DO (5V, 100mA) w/ M8 A Code |
| Serial Port |
2 x RS-232/422/485 w/ M8 A Code |
Internal Expansion
| M.2 |
1 x M.2 3042/52 Key B supports USB 3.2 WWAN w/ Dual SIM |
|---|
Storage
| Type |
1 x M.2 2280 Key M supports NVMe or SATA SSD |
|---|
Power
| Power Input |
DC-IN 9 – 36V Input (Nominal Power Input 12V or 24V) |
|---|---|
| Power Protection |
Over voltage and reverse polarity protection |
Software
| Operating System |
Windows 10 IoT Enterprise 64bit LTSC |
|---|
Environmental
| Operating Temp. |
-30 ~ 60°C, with SSD, ambient w/ air flow 0.6m/s (for barebone system) |
|---|---|
| Storage Temp. |
-40 ~ 80°C |
| Relative Humidity |
10 ~ 90% @ 40°C (non-condensing) |
| Certification / Standard |
CE, FCC Class A, UKCA |
Mechanical
| Construction |
Aluminum Alloy |
|---|---|
| Mounting Method |
Wall-mounting |
| Weight |
2.0Kg |
| Dimensions |
150(L) x 150(W) x 66(H) mm |
Ordering Information
| Mode Number |
SBOX-2624P-IP66 |
|---|---|
| Description |
AMD Ryzen™ Embedded R2312 w/ 2x HDMI® / 2 x GbE PoE / 2 x COM / DC-IN 9-36V / IP66 Waterproof Computer |
| State of Origin |
Taiwan |
