Fanless Box PC

AMD Ryzen™ Embedded R2312 2C/4T Processor

CPU Built-in Graphics AMD Radeon™ Graphics

1 x SO-DIMM DDR4-2400 up to 32GB (ECC Support with ECC DRAM)

TPM 2.0

System reset 1 ~ 255 sec. or min. settings in BIOS

2 x HDMI® supports 4K@60Hz as specified in HDMI 2.0b

1 x Line-out and 1 x Mic-in

1 x 2.5GbE, 1 x GbE (SBOX-2624)
1 x 2.5GbE, 4 x GbE * from Marvell Ethernet Switch w/PoE (PSE Class 3:15W) via RJ-45 (SBOX-2624P)
*Share with 1GbE bandwidth; Power budget: 60W

2 x USB 3.2 Gen 2 (10Gbps)
2 x USB 2.0

4 x DI (9-36VDC), 4 x DO (5V, 100mA)

2 x RS-232/422/485, 4 x RS-232 (SBOX-2624)
2 x RS-232/422/485, 2 x RS-232 (SBOX-2624P)

1 x M.2 3042/52 Key B supports USB 3.2 WWAN w/ Dual SIM
1 x M.2 2230 Key E supports PCIe and USB2.0 Wi-Fi/BT

1 x M.2 2280 Key M supports NVMe or SATA SSD
1 x 2.5" SATA SSD(SBOX-2624)

DC-IN 9 – 36V Input (Nominal Power Input 12V or 24V)

Over voltage and reverse polarity protection

Windows 10 IoT Enterprise 64bit LTSC
Windows 11 IoT Enterprise
Ubuntu 20.04 LTS 64bit
Ubuntu 22.04 LTS 64bit

-30 ~ 60°C, with SSD, ambient w/ air flow 0.6m/s (for barebone system)

-40 ~ 80°C

10 ~ 90% @ 40°C (non-condensing)

CE, FCC Class A, UKCA

Aluminum Alloy

Wall-mounting

1.5Kg

150(L) x 150(W) x 65(H) mm

SBOX-2624

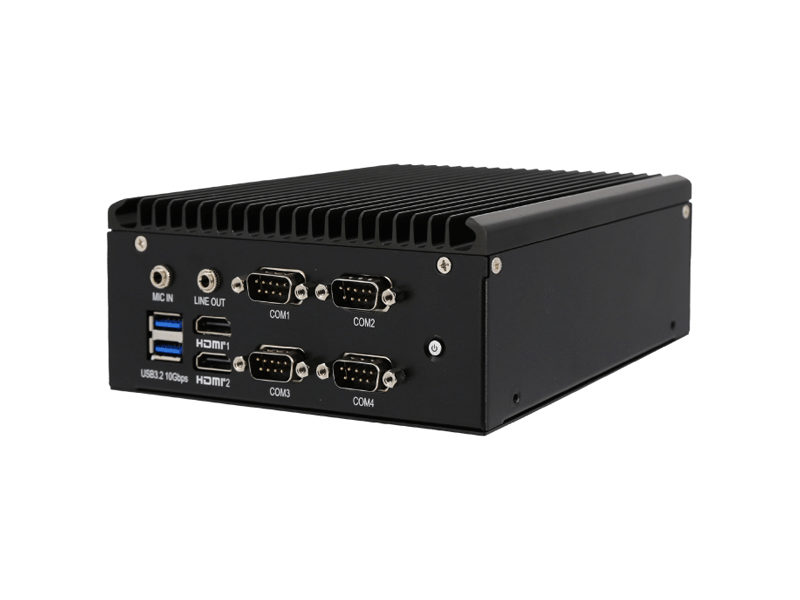

SBOX-2624(P)

SBOX-2624
AMD Ryzen™ Embedded R2312 w/ 2x HDMI® / 1 x 2.5GbE, 1 x GbE / 6 x COM / DC-IN 9-36V Embedded Computer
SBOX-2624(P)

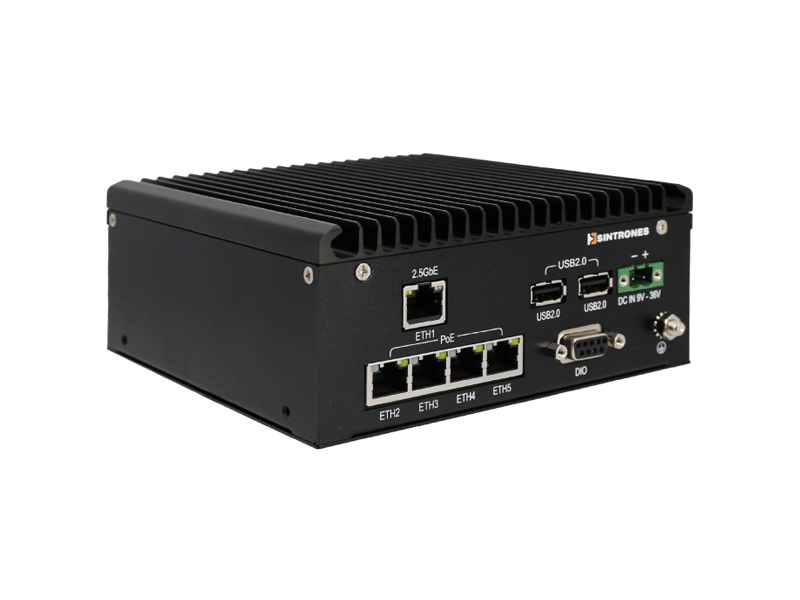

AMD Ryzen™ Embedded R2312 w/ 2x HDMI® / 1 x 2.5GbE, 4 x GbE PoE / 4 x COM / DC-IN 9-36V Embedded Computer

Taiwan
